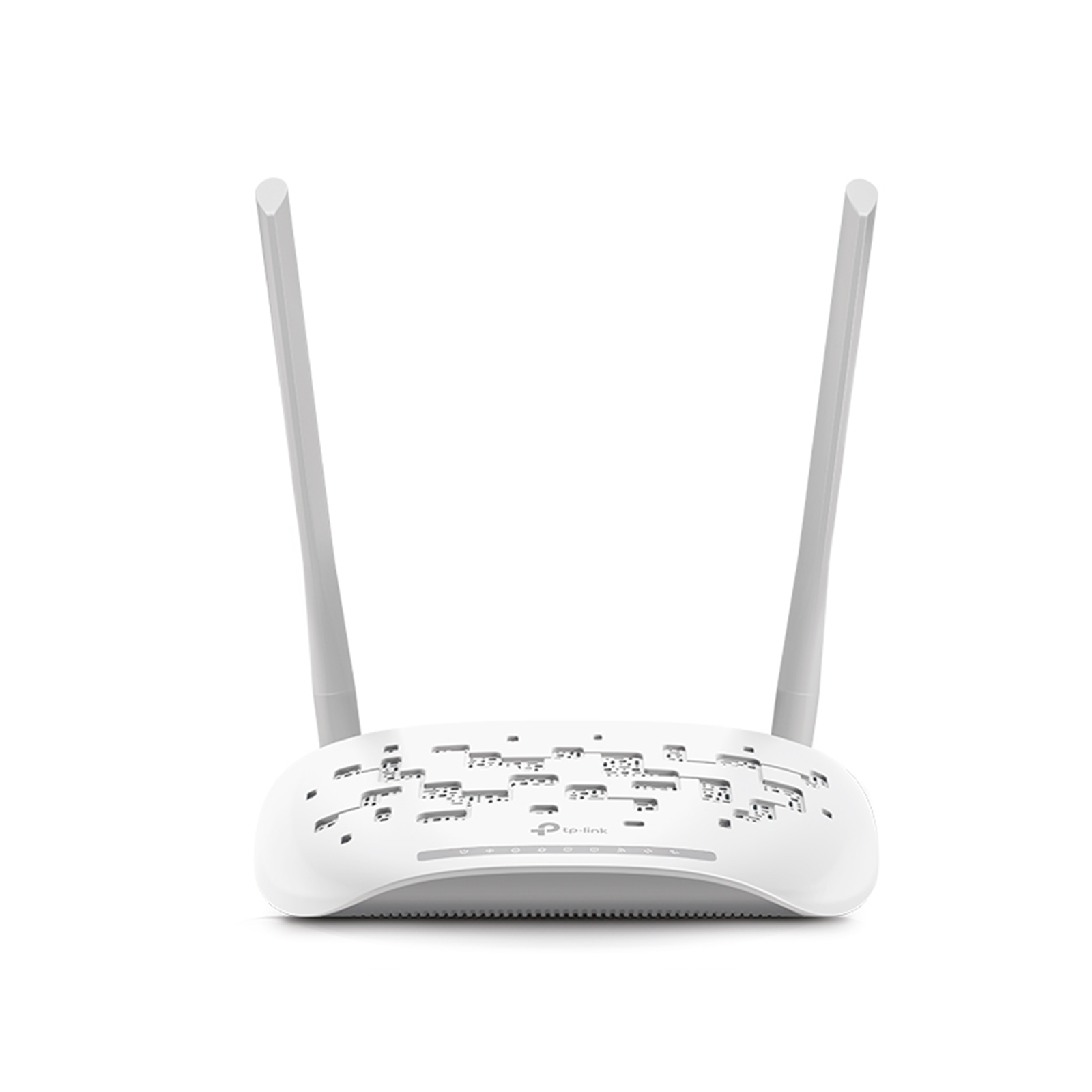

XN020-G3V
300Mbps Wireless N Gigabit VoIP GPON Router With (1Year Warranty)
₨5,900
Compare
| HARDWARE FEATURES |
| Transmission Distance |
0 ~ 20Km Max |
| Interface |
1* SC/APC port |
|
| 1* 10/100/1000Mbps LAN Port |
|
| 1* 10/100Mbps LAN Port |
|
| 1 FXS Port |
| Button |
Power On/Off Button, Reset Button, WPS/Wi-Fi Buttion |
| External Power Supply |
12V/0.6A |
| Wireless Standards |
IEEE 802.11g, 802.11b,802.11n |
| IEEE Standards |
IEEE 802.3, IEEE 802.3u, 802.3ab |
| Dimensions ( W x D x H ) |
7.1 ×4.9× 1.4 in. (181.5 ×125.7 ×36.2mm) |
| Antenna Gain |
2X2，2.4G 5dBi |
| GPON Standards |
ITU G.984.1 |
|
| ITU G.984.2 |
|
| ITU G.984.3 |
|
| ITU G.984.4 |
| Optical Module |
Class C+ |
| Optical Wavelength |
Transmit at 1310nm Receive at 1490nm |
| Bandwidth |
Downstream up to 2.488Gbps Upstream up to 1.244Gbps Max |
| Receiver |
APD-TIA |
| Transmitter |
DFB Laser |
| WIRELESS FEATURES |
| Frequency |
2.4GHz |
| Signal Rate |
300Mbps at 2.4GHz |
| Transmit Power |
<20dBm (2.4GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Wireless Schedule |
Support 2.4GHz Schedule |
