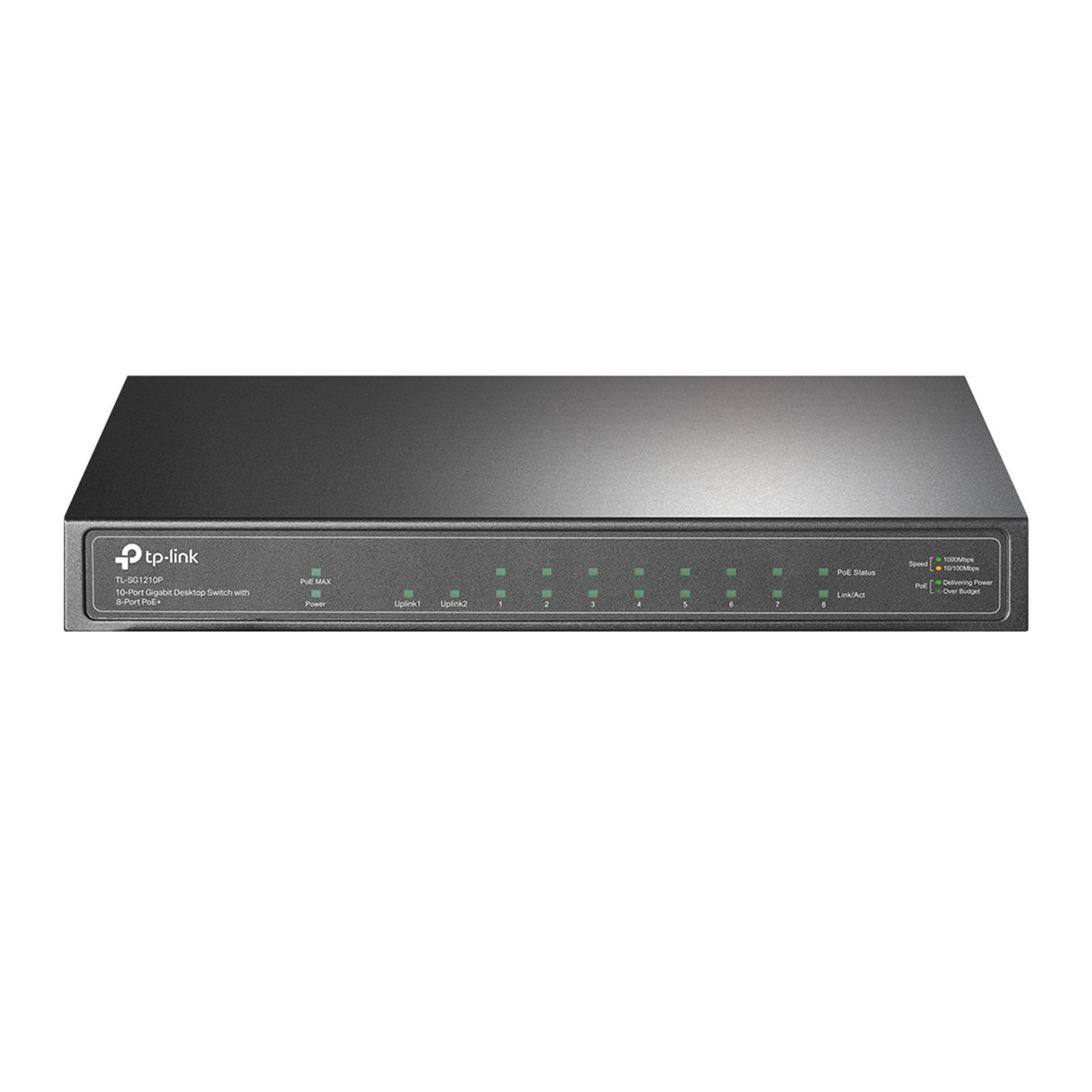

TL-SG1210P
10-Port Gigabit Desktop Switch with 8-Port PoE+ With (1Year Warranty)
₨17,500
Compare
| HARDWARE FEATURES |
| Interface |
8 PoE+ 10/100/1000Mbps RJ45 Ports |
| 1 10/100/1000Mbps RJ45 Port |
| 1 Gigabit SFP Slot |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| 1000BASE-X MMF, SMF |
| Fan Quantity |
Fanless |
| Physical Security Lock |
Yes |
| Power Supply |
External Power Adapter(Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate |
14.88 Mpps |
| PoE+ Ports(RJ45) |
Standard: 802.3at/802.3af compliant |
| PoE Ports: Port1- Port 8 |
| PoE Power Budget: 63W |
| Mac Address Table |
4K |
| Jumbo Frame |
16 KB |
| Switching Capacity |
20 Gbps |
| Dimensions ( W x D x H ) |
209 × 126 × 26 mm |
| Max Power Consumption |
7.11 W (220/50Hz. no PD connected) |
| 78.13 W (220/50Hz. with 63W PD connected) |
| Max Heat Dissipation |
24.25 BTU/h (no PD connected) |
| 266.42 BTU/h (with 63W PD connected) |
