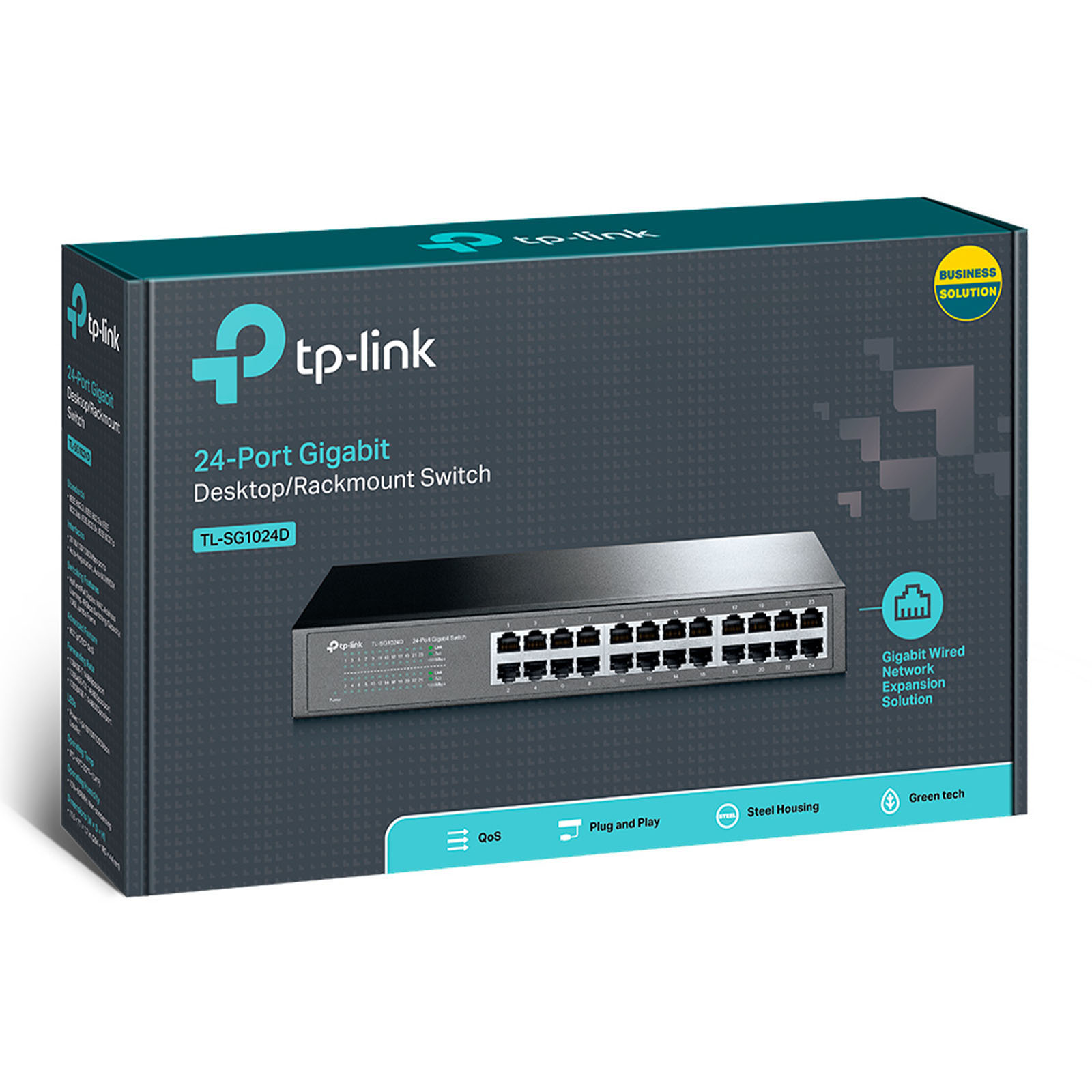

TL-SG1024D
24-Port Gigabit Desktop/Rackmount Switch With (1Year Warranty)
₨20,000
Compare
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface |
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity |
Fanless |
| Physical Security Lock |
No |
| Power Supply |
100-240VAC, 50/60Hz |
| Power Consumption |
Maximum: 13.1W (220V/50Hz) |
| Dimensions ( W x D x H ) |
11.6*7.1*1.7 in. (294*180*44 mm) |
| Mounting |
Rack Mountable |
| Max Power Consumption |
13.62W(220V/50Hz) |
| Max Heat Dissipation |
46.44BTU/h |
| PERFORMANCE |
| Switching Capacity |
48Gbps |
| Packet Forwarding Rate |
35.7Mpps |
| MAC Address Table |
8K |
| Advanced Functions |
• Isolation Mode: Ports 1-22 |
| • Loop Prevention: Ports 1-24 |
| Jumbo Frame |
10KB |
| Green Technology |
Yes |
| Transfer Method |
Store-and-Forward |
