General |
|

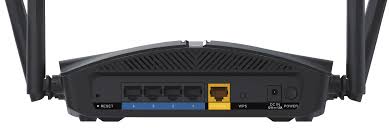

| Device Interfaces | • IEEE 802.11 ac/n/g/b/a wireless LAN |
| • Four 10/100/1000 Mbps Gigabit Ethernet LAN ports | |
| • One SuperSpeed USB 3.0 port | |
| • One 10/100/1000 Mbps Gigabit Ethernet WAN port | |
| LEDs | • Power • 5 GHz WLAN |
| • Internet • 2.4 GHz WLAN | |
| • USB 3.0 | |
| Antenna Type | • Four external antennas |
| Wi-Fi Data Rate | • 2.4 GHz • 5 GHz |
| • Up to 400 Mbps3 • Up to 867 Mbps3 | |
| Standards | • IEEE 802.11ac • IEEE 802.11n |
| • IEEE 802.3u • IEEE 802.11g | |
| • IEEE 802.1p • IEEE 802.11b | |
| • IEEE 802.3ab • IEEE 802.11a | |
| • IEEE 802.1q | |
| Minimum Requirements | • Windows 10/8.1/8/7/Vista or MAC OS X 10.6 or higher |
| • Internet Explorer 10, Firefox 28.0, Chrome 28.0, Safari 6.0, or other Javascript-enabled browser | |
| • Network Interface Card | |
| • Cable/DSL modem or other Internet service provider equipment with Ethernet port | |
Functionality |
|
| Security | • WPA / WPA2 (Wi-Fi Protected Access) – Personal |
| • WPS (Wi-Fi Protected Setup) | |
| Advanced Features | • Web Setup Wizard • Firewall – Network Address Translation (NAT) |
| • QoS (Quality of Service) • Guest Zone | |
| • DMZ (De-militarized Zone) • IPv6-Ready | |
| • McAfee Protected • D-Link Wi-Fi App | |
Physical |
|
| Dimensions | • 202.70 x 144.39 x 58.35 mm (7.98 x 5.68 x 2.59 in) |
| Weight | • 370 g (0.81 lbs) |
| Power Adaptor | • Input: 100 to 240 V AC, 50 / 60 Hz • Output: 12 V, 1.5 A |
| Temperature | • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 65 °C (-4 to 149 °F) |
| Humidity | • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing |
| Certifications | • FCC |
| • IC | |
| • CE | |
Order Information |
|
| Part Number | Description |

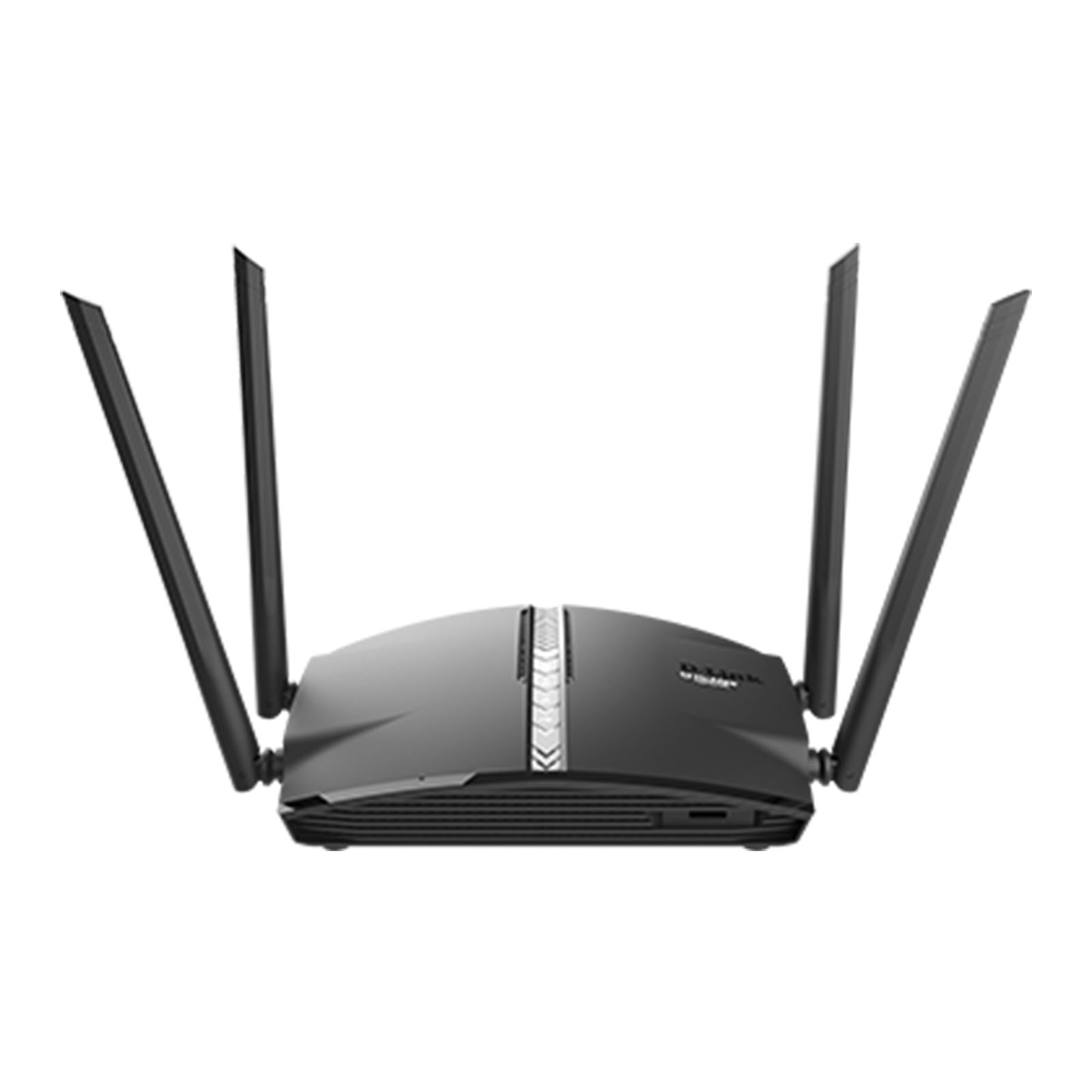

| DIR-1360 | AC1300 Smart Mesh Wi-Fi Router |
